Beauty Lighting Setups and Diagrams from Our Shoots

The light

Why this setup

An empty studio set closed in by white boards, a stool in the middle, a hard reflector on a tall stand and a small softbox in the back

Behind the scenes

The white set, before the model steps in

A white set and one hard light

We shot this beauty story for L'Officiel. Neon liner needs light that is clean enough for the colour and still has an edge, so we closed the set in white and lit the face from the side with a hard reflector.

The set is a box of white. A fabric frame overhead works as a ceiling, and white boards close the set on all sides. Then a hard reflector fires sideways across the face at head height. It brings the drama, and because the set is white, its light bounces around and fills the shadows on its own. A small softbox behind the camera lifts what is left. A snoot adds one playful spot on the backdrop.

Set8×8 muslin frame overhead, five white boards around
KeyHard reflector, camera left, at head height
FillSmall softbox with grid, behind the camera
BackdropSnoot, one spot of light
ColourCapture One style · inside the Lab

The setup

Build it in 3D

The first three steps

The setup from the L'Officiel shoot, rebuilt in 3D. Pick a step to switch the lights on one by one. The last step and the full plan are inside the Lab.

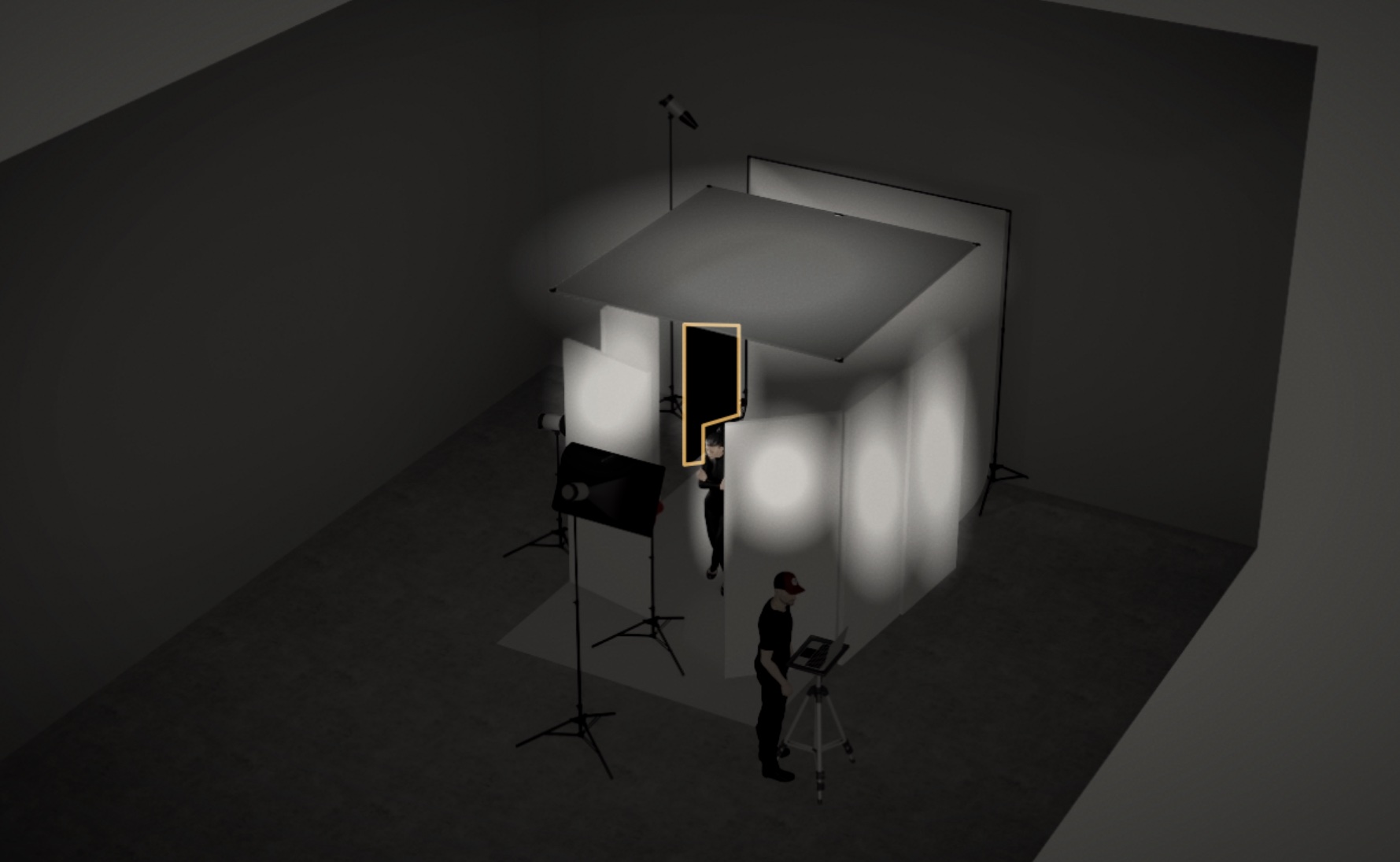

3D view of a small set closed in by white boards, with a fabric frame on top as a ceiling

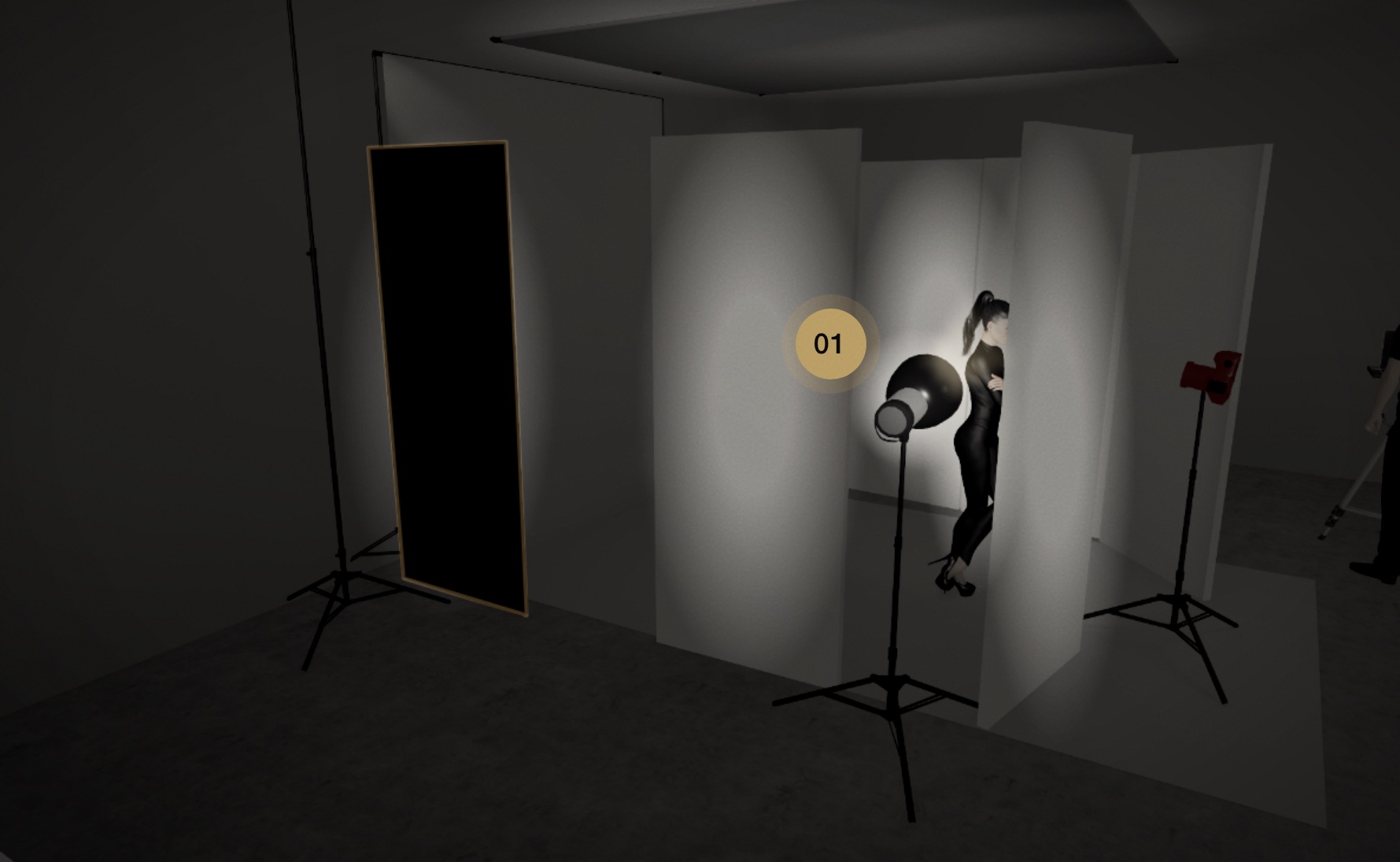

3D view inside the white set: a hard reflector on a stand on camera left, level with the model's head, a black board behind it

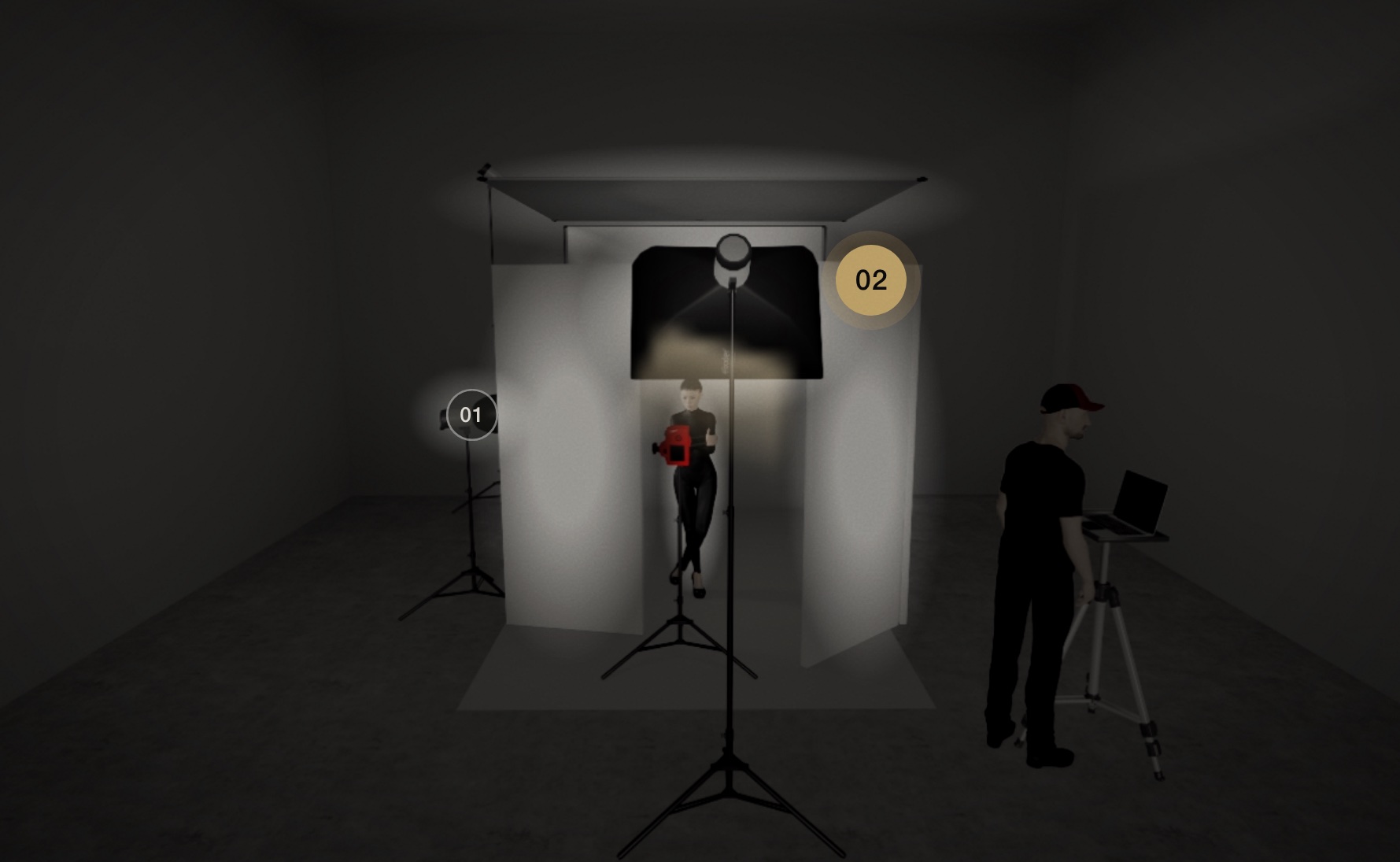

3D view from the front: a small softbox above and behind the camera, aimed down at the model, the key light on camera left

Step 1 · The white set

Compare

Three beauty editorials

Three beauty editorials compared

Each setup starts from the make-up and what the light should do for it.

Close-up of an eye with graphic neon pink and orange liner, warm skin lit from the side

L'Officiel

Built in 3D above

One hard light in a white set. The look is edgy and the skin stays clean.

Feels: Edgy, graphic, playful
Lights: 3, plus a fabric ceiling and white boards
Best for: Bold colour, graphic make-up, close-ups

Model with lime green eyeshadow and one hand over her eye, wearing rings and white-tipped nails, against a pale backdrop

Elle

Soft first, then one accent. Two umbrellas light the backdrop. Two reflectors fire up into a fabric frame overhead, so a soft, even light falls from above. Then a projection spot with a circle gobo, next to the camera, puts a crisp circle of light on the face and makes the make-up the hero. A black board on camera left adds a little contrast.

Feels: Soft, clean, creative
Lights: 5
Best for: Make-up details, hands, rings

Close-up of a model with deep skin, eyes closed and pale lashes glowing, a hoop earring and glossy lips against a white backdrop

Beauty editorial

Seven lights, each one boxed in. Two umbrellas burn the backdrop to pure white. Two hard reflectors, tucked between black boards on each side, wrap a glow around the face without hitting it head-on. A small light on camera right only puts life in the eyes, one low light bounces off the floor, and a silver umbrella behind diffusion opens the shadows.

Feels: Dark, glowing, graphic
Lights: 7, plus black boards
Best for: Deep skin tones, gloss, lashes

In beauty, the light follows the make-up. Graphic colour can take a hard light. Fine details want a soft base and one accent. Deep skin and gloss love light from the sides. All three setups start with one light that gives the picture its character, and then decide how much to soften around it. For soft, round light on skin, see our beauty dish breakdown. For full looks and clothes, see fashion editorial lighting setups.

From the set

Four things that matter

01
Light for the make-up
Decide first what should shine: lips, liner or skin. Then place the light for that.
02
White walls are free fill
A small white set bounces a hard light everywhere and softens the shadows without another lamp.
03
Hard light can be beauty light
A hard light from the side gives edge and texture. White boards and a little fill bring the skin back.
04
Add one playful detail
A spot on the backdrop or a circle of light on the face turns a simple setup into an editorial.

Inside the Lab

The full setups

The rest is inside the Lab

Members get all three setups the way we use them on set, with every detail we left out here.

Equipment list, every piece by nameLab
Power settings for every lightLab
Camera settingsLab
Step-by-step module with 3D viewsLab
Video breakdown of each setupLab
The Capture One style we usedLab

The full 3D plan of the L'Officiel beauty setup inside the Lab, blurred

Setup 08 · L'Officiel

See the plans

Questions

Beauty lighting

What is the best lighting setup for beauty photography?

There is no setup that fits every shoot. Start with what the make-up needs. Soft, even light shows skin and colour. A harder light from the side gives edge and shape. Many beauty setups use one main light and a lot of white around it to fill the shadows.

How many lights do I need for a beauty shoot?

Often one or two are enough for the face. The three setups on this page use one to five lights. Extra lights usually go on the backdrop or add an accent, like a spot or a circle of light.

What does a beauty lighting diagram show?

Where each light stands, what it is aimed at, and what shapes the light around it: frames, boards and flags. Our 3D diagrams show the exact setup from the shoot, one light at a time.

Can I light a beauty shoot with sunlight?

Yes. Low afternoon sun is hard and warm. Mirrors or white boards bounce it back into the face. In the studio, one hard light set high and far away does the same job.
